USB2Any
provides a simple HID solution to
control various hardware devices with I2C, SPI, RS232(TTL), JTAG,
ADC, SPP/EPP, GPIO interfaces from your PC. Multiple
commands can be easily packed into one USB transaction
frame(which takes 1 ms minimum for low and full speed device),
instead of one command per transaction as other similar product
does, so tremendous execution efficiency can be achieved by
USB2Any.
Features:
กด

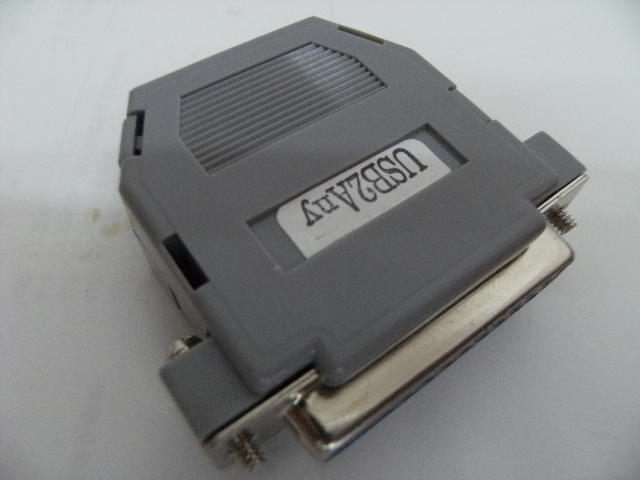

In a compact, rigid plastic cover with mini-B to DB25
interface connector.
กด Provide a 3.3V/180mA
power source to support user applications.
กด
Configurable I2C, SPI and RS232(TTL) bus clock frequency.
กด
One I2C master port, one SPI master port, one RS232 port in TTL
level, one SPP/EPP parallel port, one JTAG port and two
single-end analog input channels.
กด Up to 23 user
configurable pins which, through the ability of writing the SFR
registers the USB2Any provided, can
accomplish almost any function the C8051F320 can have, such as a
10 channel differential analog inputs AD converter with internal
voltage reference.
กด Flexible and powerful DLL software
interface and plenty of examples with source files on read/write
a LCD module, a 25 series flash device, a 24 series EEPROM and a
CPLD JTAG interface.
กด User can build his own customized
commands to fit his hardware requirements so that his application
can run efficiently.
User's
Manual (pdf)
C++
Example files(zip)
TestU2A(zip)

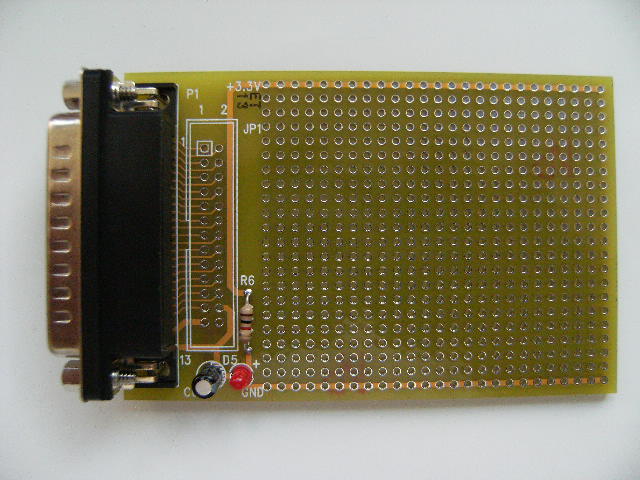

a
58x89mm breadboard for experiment usage, only US$5.00
|
