Universal ISP Socket

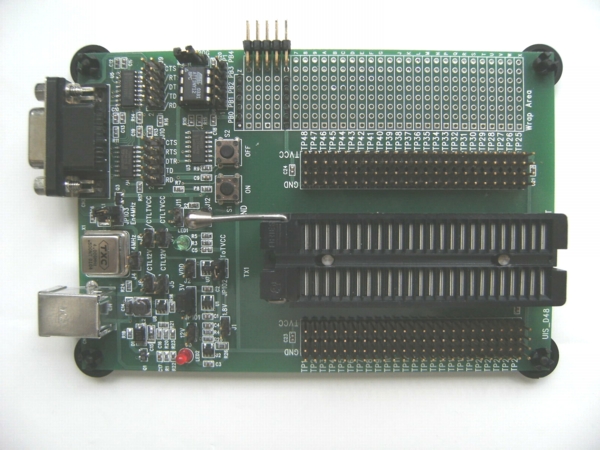

UIS-D48 Main board　

Features:

 ● USB powered voltage supply:

1.      A 3.3V or 5V Target-VCC(TVCC) which can be controlled manually or through a user-selectable high- or low-active signal. It can also be disconnected from the Target socket as required.

  2. A 1.8V auxiliary LDO voltage regulator which was controlled by same way as the TVCC has.

  3. A 12V auxiliary switching voltage regulator which can be controlled through another user-selectable high- or low-active signal.

 ● A 4MHz oscillator which was controlled by the TVCC.

● A COM port interface which supply logic signals of RD, TD, DTR, RTS and CTS, inverted or non-inverted, at the TVCC voltage level.

 ● A socketed 8-pin MicroController(ATTiny12) which can be programmed to support specific programming requirements.

 ● An Open-drain pull-up inverter which can be used to handle the bi-directional I/O pin of the target chip for its programming requirement.

User's Manual(pdf)

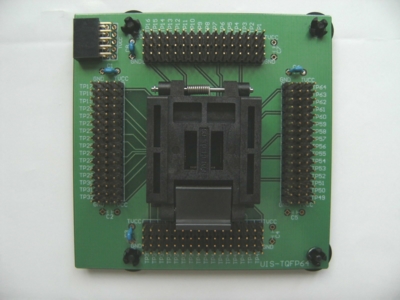

                       UIS-TQFP64 socket

                        UIS-Q48 socket

                     UIS-Q100 socket
