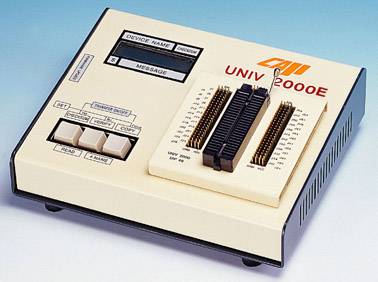

Completely stand alone operation with
a 16x2 characters LCD display,an audiable buzzer and three keys.
Standard commands:
Buffer checksum, Slave checksum,
Erase,Blank Check, Verify, Copy, Force, +Name, -Name, Sector-Protect
setting, UpLoad/DownLoad/Change Group.
High Speed:
Write a 16M flash(M28W160) in only 9 seconds.

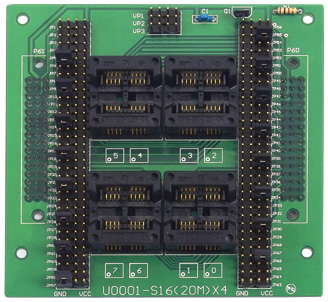

Universal Adaptor:
Only need one adaptor for all the ICs
they have the same package. Support all type of
packages,i.e.,DIP/PLCC20-68/TSOP32/TSOP40/SOP44/TSOP56/uBGA48/LFBGA/...
Contact Test:
IC's pin contact condition will be
checked before every operation.
High Capacity:
Standard 128MB CF card buffer.
Multi Voltage:
Support 3V/5V devices.
Easy Update:
Internal Firmware can be updated
through PC LPT/USB port.
Data Transfer:
Data can be Upload/Download through PC
USB.
¡@ |
¡@
