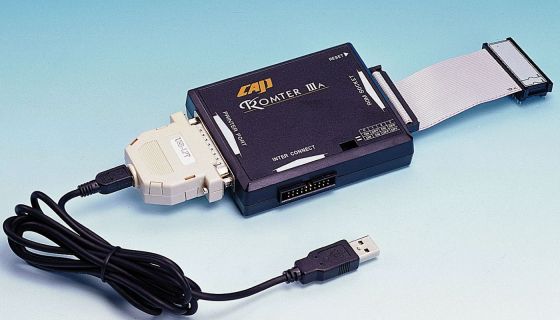

ROMTERIII...the best
ROM Emulator you can have
Features:
1. No plug-in card or external power supply is required. A PC printer port is used for data transfer and it
takes 2.5 seconds to download a 64K byte binary file on a 386 PC.2. Using a USB to LPT adaptor(USB2LPT, an option) to make this emulator works on PC's USB port. It
can speed the download up to 0.4 seconds for a 64K byte binary file.3. A single printer/USB port can control up to 4 ROMTER units by using a 20 pin connector (labeled "inter
connect") mounted on the case to link multiple ROMTERs together. Each ROMTER, via an internal
DIP switch setting, can independently emulate an 8bit EPROM from( 64K - 8M bits)FLASH(256K-4M)
or SRAM(256K-4M).
4. The ROMTER has a tri-state output wire which can be clipped to the target system for reset purposes.
During the period of data download, all ROMTERs which are connected to the same printer port will
set this signal to a user-defined logic state. By connecting this wire onto the reset source pin of the target
board, the target system will automatically reset at each download session.
5. The ROMTER's access time will be the sum of the internal delay of the on-board FPGA chip (20ns max.)
and the access time of the SRAM chip( 70ns/20ns) installed in the ROMTER.6. Small size (10x8x2.5 cm) and light weight(158 gm) in a plastic case.
