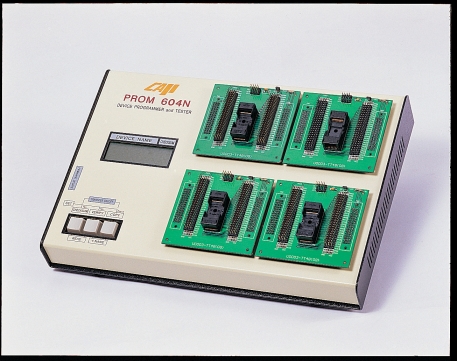

Completely stand alone operation with
a 20x4 characters LCD display,an audiable buzzer and three keys.
Standard commands:
Buffer checksum, Slave checksum,
Erase,Blank Check, Verify, Copy, Force, +Name, -Name, Sector-Protect
setting, UpLoad/DownLoad/Change Group.
High Speed:
High programming speed for NOR Flash
memory. 4 pcs of MX29LV640 at 69 seconds(B+C+V)
High speed testing for NAND Flash. 8
pcs of MT29F2G08A at 2Min19Sec.

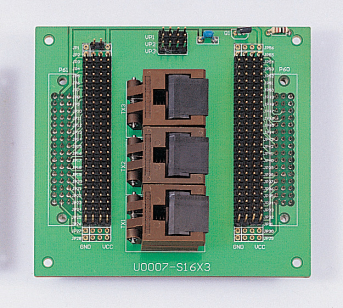

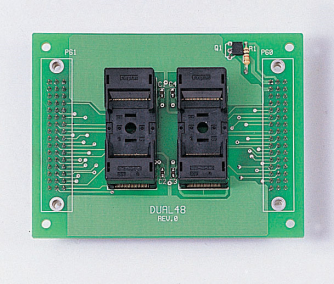

Universal Adaptor:
For device package with 68 pin or
less, only need one adaptor for all the ICs
they have the same package. Support various types of package:
DIP/PLCC20-68/TSOP32/TSOP40/SOP44/TSOP56/uBGA48/LFBGA/...
Contact Test:
IC's pin contact condition will be
checked before every operation.
High Capacity:
Standard 128M CF Card internal buffer.
Multi Voltage:
Support 3V/1.8V devices.
Easy Update:
Firmware can be updated
through PC's LPT/USB port.
Data Transfer:
Data can be Upload/Download through PC
USB port.
¡@ |
¡@
